D-Tube 520

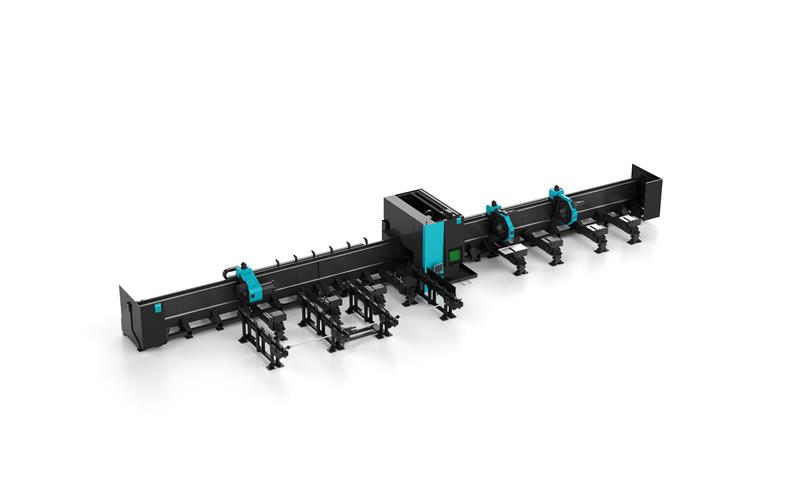

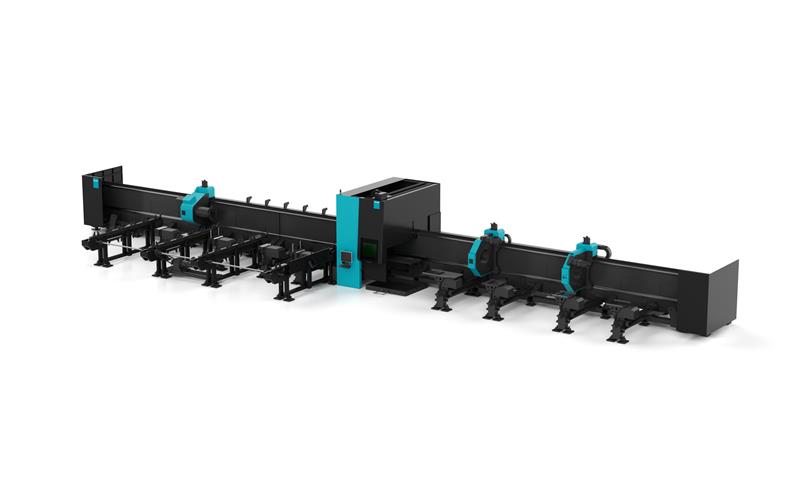

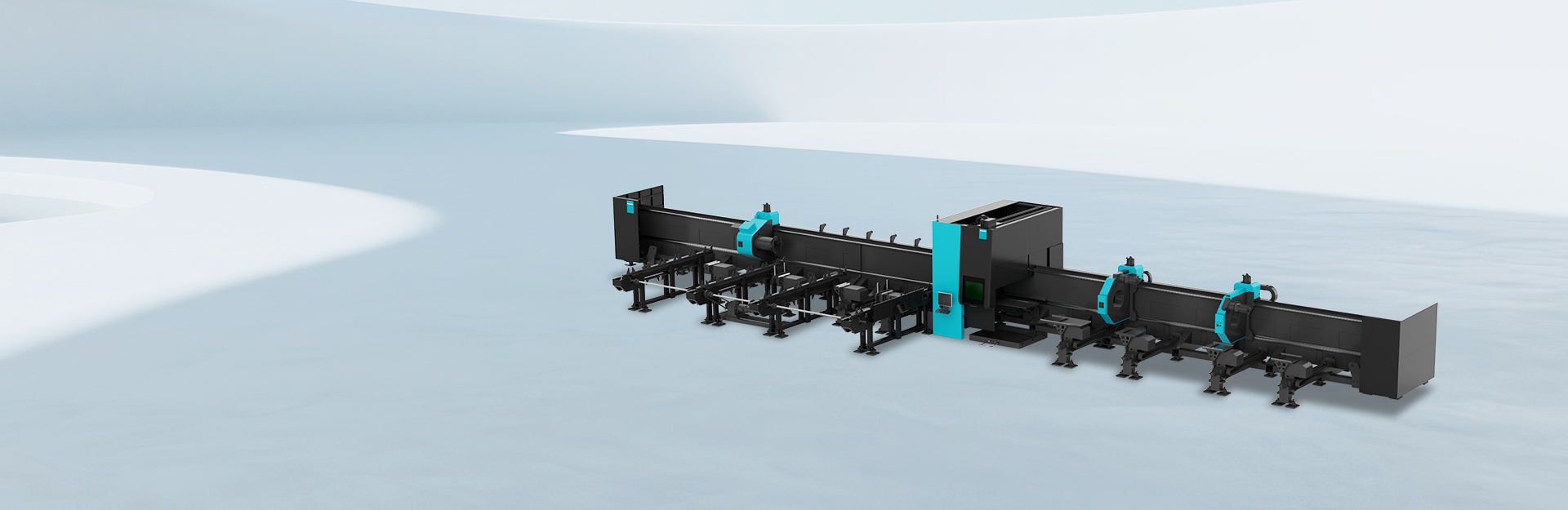

Heavy Duty Fiber Tube Laser Cutting Machine

Add to List

Product Comparison

Home·Products·D-Tube 520

Product Description Product Features Technical Parameter Related Products

Add to List

Product Comparison

Get a Quote

Product Description

D-Tube 520 Professional fiber tube laser cutting machine is developed for the section bar and tube cutting market. It adopts the latest independent research and development bus type CNC laser tube cutting system to achieve tube supporting device, chuck and other control. The solution provided is designed to meet cutting requirements for various materials, including carbon steel, stainless steel, and aluminum alloy. It excels in cutting circular tubes, square tubes, U-shaped grooves, universal beams, profiled tubes, and other tube shapes. It offers precise and efficient cutting, hole-opening, and profile cutting capabilities.

Product Features

Segmental type unloading, various methods for different pipe lengths.

Multi-point heavy-duty centering chuck, single material heavy-duty up to 1.5 tons.

Capable of processing super heavy-duty pipes with a diameter of up to 520mm.

Fixed Bridge Gantry with stable operation and higher precision of the cutting head.

Multi-chuck automatic direction change, to achieve cutting "zero" tail material, saving material cost.

High negative pressure dust extraction function, better dust extraction effect, remove residue and protect the chuck.

Technical Parameter

Number of chucks	3			4
Round tube (mm	Φ50-Φ510
Square tube(mm)	□3535-□510510
Theoretical maximum chuck load	1500kg
Loading length	12.2m			12.2m
Unloading length	6m	9m	12m	9m	12m
X/Y-axis positioning accuracy	±0.05mm/m
X/Y-axis repeated positioning accuracy	±0.03mm/m
Bevel cutting function	Optional
